mil.today
K-4386 Typhoon-VDV is a part of the family KAMAZ Typhoon
for airborne troops, which has a mine protection.
According to the company’s officials, the project of
airborne car K-4386 is an advanced model K-53949 designed by JSC Special
Automobiles. Source:
KamAZ-53949 Mine resistant ambush protected vehicle:
Details
K-53949 - vitalykuzmin.net
The development of the project for a new armored vehicle
for the airborne troops began in late 2015, and five months later the first
prototype was launched for testing.
Among the requirements for the vehicle - the possibility
of parachute landing, as well as protection against small arms and mines.
Nikita Grigoriev, Mil.Today
Nikita Grigoriev, Mil.Today
The vehicle is driven by a 350hp diesel engine - produced
under Cummins license in Russia. The power pack allows the vehicle to move at
top speed of 105 km/h with a range of up to 1200 km.
Nikita Grigoriev, Mil.Today
Nikita Grigoriev, Mil.Today
Nikita Grigoriev, Mil.Today
Nikita Grigoriev, Mil.Today
Nikita Grigoriev, Mil.Today

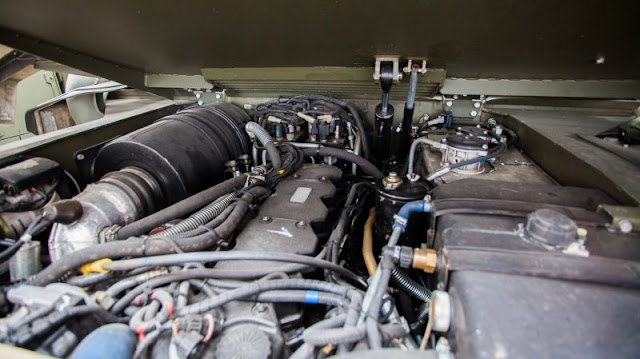

Cummins 6 ISBe 350

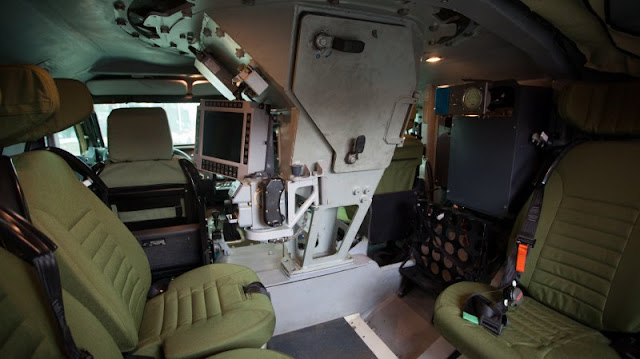

Vehicle has an EPOCH remotely-controlled veapon station
with 2A42 30-mm gun, developed by the Central Research Institute BUREVESTNIK.
Nikita Grigoriev, Mil.Today
Nikita Grigoriev, Mil.Today
Nikita Grigoriev, Mil.Today
Nikita Grigoriev, Mil.Today
30-mm automatic cannon 2A42
Caliber, mm: 30
Number of rifling: 16
Cutting step, mm: 715,5 Stamina
survivability, rds: 6000
Gun length, mm: 3027
Gun weight, kg: 115
Rate of fire, shots / min
- small: 300
- large: 550
The initial velocity of the projectile, m / s: 960
The recoil force, kN (kgf): 40 ... 50 (4000 ... 5000)
Feeding of the gun: two-tape
Recharge: pyrotechnic and manual
Number of rifling: 16
Cutting step, mm: 715,5 Stamina
survivability, rds: 6000
Gun length, mm: 3027
Gun weight, kg: 115
Rate of fire, shots / min
- small: 300
- large: 550
The initial velocity of the projectile, m / s: 960
The recoil force, kN (kgf): 40 ... 50 (4000 ... 5000)
Feeding of the gun: two-tape
Recharge: pyrotechnic and manual
Source: авиару.рф
Source: army-guide.com
