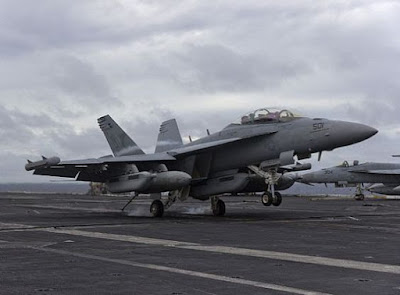

F/A-18E/F Super Hornet with Lockheed Martin’s AN/AAQ-33 Sniper Advanced Targeting Pod - lockheedmartin.com
22 SEPTEMBER, 2017 SOURCE: FLIGHTGLOBAL.COM
BY: LEIGH GIANGRECO WASHINGTON DC
Canada's plans to buy the Boeing F/A-18E/F
Super Hornet may be off the table, but details of the originally requested
configuration show a Raytheon-made targeting pod's grip on the Boeing fighter
is under pressure from a Lockheed Martin alternative that was long considered
incompatible.
Though a dispute between Boeing and Bombardier has thrown
cold water on the Canadian deal, the potential sale would have put Lockheed
Martin’s AN/AAQ-33 Sniper Advanced Targeting Pods onto the F/A-18s. The shift
from ATFLIR toward Sniper began more than a decade ago, with a Lockheed Martin
flight test aboard a Super Hornet that stoked a US Navy review of its targeting
pods. Due to budget constraints, the study never materialized into a request
for proposals, and the navy continues to fly Raytheon’s Advanced Targeting
Forward Looking Infrared (ATFLIR) on its Super Hornet fleet.
Though sequestration has stalled the new pod effort,
Sniper remains high on the US Navy’s desired capabilities list, says Don
Bolling, director of business development at Lockheed missiles and fire
control. Lockheed already fields Sniper on Canada’s current fleet of CF-18s,
following a 2007 upgrade that involved no aircraft modifications. Last May,
Lockheed announced a Sniper delivery to the Kuwait Air Force’s F/A-18C/D Hornet
fleet.
In 2015, Sniper flew its first successful flight aboard a
US Navy F/A-18F at Naval Air Weapons Station China Lake, California. Lockheed
flew the pod on the Super Hornet’s centerline, whereas ATFLIR rides on the
aircraft’s cheek station.
Under an internal research and development programme,
Lockheed designed a prototype adapter unit that allowed Sniper to mount to the
F/A-18E/F. Following several foreign military sales, Lockheed is refining the
adapter design, in conjunction with Boeing and the navy, a navy spokesman tells
FlightGlobal. The Sniper pod’s internal environmental control system, which
regulates cooling, is independent from the aircraft’s environmental control
system. A two-way data link module, located inside the adapter, relies on the
aircraft ECS for cooling air, the navy spokesman says.
The CF-18 adapter is a different design which fits the
outer mold-line on the legacy F/A-18A-D Hornets. The US Navy’s Super Hornet has
a square inlet while the older F/A-18C/D model has a rounded inlet, which
requires a different mounting structure, Bolling says.
Original post: flightglobal.com
Lockheed Martin’s Sniper ATP Soars on Super
Hornet
F/A-18E/F Super Hornet with Lockheed Martin’s AN/AAQ-33
Sniper Advanced Targeting Pod - lockheedmartin.com
ORLANDO, Fla., April 13, 2015 – On March 30, 2015,
Lockheed Martin’s Sniper Advanced Targeting Pod (ATP) successfully completed
its first flight test aboard a U.S. Navy F/A-18F Super Hornet. Lockheed Martin
team members collaborated with Boeing and the U.S. Navy to complete necessary
software updates and aircraft modifications for the initial flight test, which
occurred at Naval Air Weapons Station China Lake, California.
Headquartered in Bethesda, Maryland, Lockheed Martin is a
global security and aerospace company that employs approximately 112,000 people
worldwide and is principally engaged in the research, design, development,
manufacture, integration and sustainment of advanced technology systems,
products and services. The Corporation’s net sales for 2014 were $45.6 billion.
Source: lockheedmartin.com
Lockheed Martin’ Sniper pod
Lockheed Martin’s Sniper ATP (Advanced Targeting
Pod) Picture: Lockheed Martin – Image:
navyrecognition.com
Mission
Sniper pods provide improved long-range target
detection/identification and continuous stabilized surveillance for all
missions, including close air support of ground forces. The Sniper pod enables
aircrews to detect and identify weapon caches and individuals carrying
armaments, all outside jet noise ranges. Superior imagery, a video datalink and
J-series-weapons-quality coordinates provided by the Sniper pod enable rapid
target decisions and keep aircrews out of threat ranges.
High resolution imagery for non-traditional intelligence,
surveillance and reconnaissance (NTISR) enables the Sniper pod to play a major
role in Air Force operations in theater, providing top cover for ground forces,
as well as increasing the safety of civilian populations.
The Sniper pod is combat proven on U.S. Air Force and
international F-15E, F-16 (all blocks), B-1, A-10C, Harrier GR7/9 and CF-18
aircraft. Lockheed Martin is also in the final stages of integrating the Sniper
pod on the B-52. The pod’s plug-and-play capability facilitates moving the pod
across platforms without changing software.
Features
Sniper pods include a high definition mid-wave forward looking infrared (FLIR), dual-mode laser, HDTV, laser spot tracker, laser marker, video data link, and a digital data recorder. Advanced image processing algorithms, combined with rock steady stabilization techniques, provide cutting-edge performance. The pod features automatic tracking and laser designation of tactical size targets via real-time imagery presented on cockpit displays. The Sniper pod is fully compatible with the latest J-series munitions for precision weapons delivery against multiple moving and fixed targets.
Sniper pods include a high definition mid-wave forward looking infrared (FLIR), dual-mode laser, HDTV, laser spot tracker, laser marker, video data link, and a digital data recorder. Advanced image processing algorithms, combined with rock steady stabilization techniques, provide cutting-edge performance. The pod features automatic tracking and laser designation of tactical size targets via real-time imagery presented on cockpit displays. The Sniper pod is fully compatible with the latest J-series munitions for precision weapons delivery against multiple moving and fixed targets.
Advanced Targeting Pod – Sensor Enhancement
(ATP-SE) design upgrades include enhanced sensors, advanced processors, and
automated NTISR modes.
The Sniper pod’s architecture and modular
design permits true two-level maintenance, eliminating costly
intermediate-level support. Automated built-in test permits flightline
maintainers to isolate and replace an LRU in under 20 minutes. Spares are
ordered through a user-friendly website offering in-transit visibility to parts
shipment.
The Sniper pod’s modular design also offers
an affordable road map for modernizing and enhancing precision targeting
capabilities for U.S. Air Force and coalition partner aircraft.
General characteristics
Primary function: positive identification, automatic tracking and laser designation, NTISR
Prime contractor: Lockheed Martin
Length: 98.2 inches (252 centimeters)
Diameter: 11.9 inches (30 centimeters)
Weight: 446 pounds (202 kilograms)
Aircraft: F-15E, F-16 Block 30/40/50, A-10, B-1
Sensors: high resolution FLIR and HDTV, dual mode laser designator, laser spot tracker and laser marker
Primary function: positive identification, automatic tracking and laser designation, NTISR
Prime contractor: Lockheed Martin
Length: 98.2 inches (252 centimeters)
Diameter: 11.9 inches (30 centimeters)
Weight: 446 pounds (202 kilograms)
Aircraft: F-15E, F-16 Block 30/40/50, A-10, B-1
Sensors: high resolution FLIR and HDTV, dual mode laser designator, laser spot tracker and laser marker
Source af.mil
